All-In-One 1500W Handheld Fiber Laser Welding Machine With Integrated Nitrogen Generation System NEW

Brand Name : TAIYI

Model Number : TY-HS1023

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1

Price : Contact us for the price

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 500 Sets per month

Delivery Time : 7-15 work days

Packaging Details : Export standard packing

Condition : New

wavelength : 1070nm

Welding Mode : Continuous

Laser power : 1500W- 3000W

Cooling System : Water Cooling

Pulse Width : 0.5-15 ms

Repeating Precision : ±0.01mm

usage : Metal Welding

Voltage : 380V/220V, 50/60Hz

Contact Now

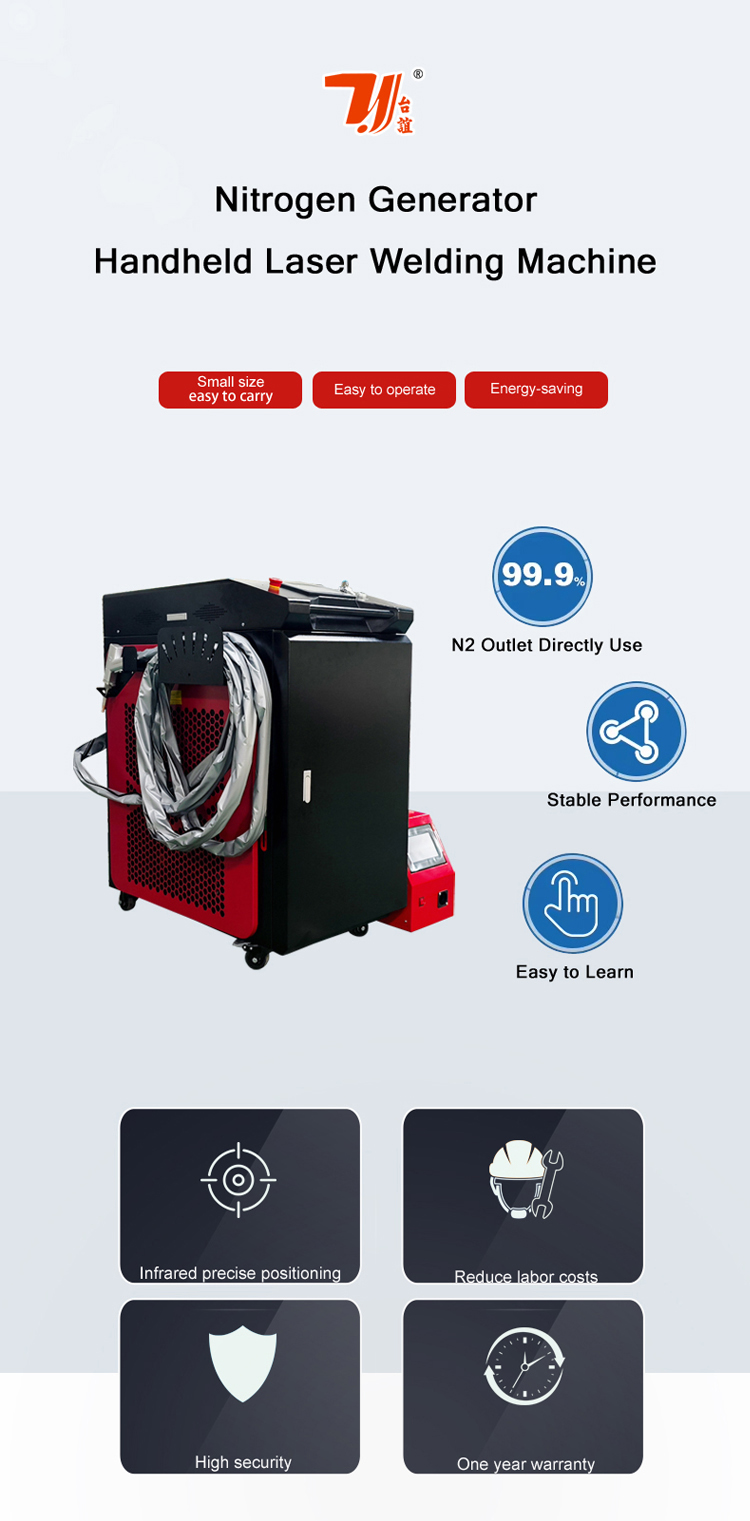

New Product Integrated N2 Nitrogen Generation System Handheld Fiber Laser Welding Machine

All-In-One 1500W Handheld Fiber Laser Welding Machine With Integrated Nitrogen Generation System NEWAll-In-One 1500W Handheld Fiber Laser Welding Machine With Integrated Nitrogen Generation System NEWAll-In-One 1500W Handheld Fiber Laser Welding Machine With Integrated Nitrogen Generation System NEWAll-In-One 1500W Handheld Fiber Laser Welding Machine With Integrated Nitrogen Generation System NEW



Parameter

Product Name Integrated Nitrogen Generation System Laser Welding Machine
Laser Power   1500W/2000W/3000W optional
Laser Wavelength 1070nm
Welding Method Continue
Welding Gap ≤0.5MM
Welding Thickness 0.5-10mm
Welding Speed 0-120 mm/s
Working Humidity <70%
Fiber Length 10M
Cooling Method Water Cooling
Nitrogen
concentration		 99.99%
Intake
pressure		 0.6-0.8MPa
Nitrogen
gas pressure		 0.5-0.8MPa
Rated
intake		 1m³/min
Voltage 220V/380V   50Hz/60Hz



Welding Thickness Comparison Table(mm)
Water-Cooling Handheld Laser Welding machine
Power Stainless Steel Carbon Steel Aluminum Galvanized Steel
1500W 0.8~4.0 0.8~4.0 0.3~2.0 0.5~3.0
2000W 1.0~5.0 1.0~5.0 0.5~3.0 1.0~4.0
3000W 1.5~7.0 1.5~7.0 1.0~4.0 1.5~5.0
6000W 3.0~12.0 3.0~12.0 2.0~6.0 2.5~8.0
Air-Cooling Handheld Laser Welding machine
Power Stainless Steel Carbon Steel Aluminum Galvanized Steel
800W 0.3~1.5 0.3~1.5 0.1~0.8 0.3~1.2
1200W 0.5~2.5 0.5~2.5 0.2~1.0 0.5~2.0
1750W 0.8~3.0 0.8~3.0 0.3~1.5 0.8~2.5
2000W 1.0~4.0 1.0~4.0 0.5~2.0 1.0~3.5




All-In-One 1500W Handheld Fiber Laser Welding Machine With Integrated Nitrogen Generation System NEWAll-In-One 1500W Handheld Fiber Laser Welding Machine With Integrated Nitrogen Generation System NEW

All-In-One 1500W Handheld Fiber Laser Welding Machine With Integrated Nitrogen Generation System NEWAll-In-One 1500W Handheld Fiber Laser Welding Machine With Integrated Nitrogen Generation System NEWAll-In-One 1500W Handheld Fiber Laser Welding Machine With Integrated Nitrogen Generation System NEW
